Utilizing Increment Plot Reporting with Integrated Block Model in Rapid Reserver

The Increment Plots report is used to present 2D graphical plots with ability to set up Block Model behind the blocks and different shadings, as well as Labels on the blocks.

Setup

To create a plot, add a new Increment Plot report and populate the applicable settings, as explained below.

Note that Plots folder is added to your reports list by default.

You can create several plots for different Shadings and Labels.

In the Setup tab, set the display parameters for the different components.

Plot Setup items are explained in the table below:



Settings	Main settings of the plot content.
Shading	Select the Shading type to report, it can be “Blast Type”, “Custom Shading” or other.
Label	Use the Labels dropdown to select which labels you want to display on the plot (for example Blast type, Volume or Perimeter).
Show Scale	Select how to display a scale for the plot ("Scale", "Grid", "None").
Expand Distance (m)	Optionally specify Expand Distance, in meters.
Draw Layers Over Blocks	Flag this option, if you want to draw layers over blocks. Note, that only polyline layers can be displayed.
Display Increment As	Select how you want to display benches/lifts, in a Tree form or in a List form.
Shading Opacity [0.1 - 1.0]	Specify a preferred Shading Opacity, from 0.1 to 1.
Hatch Pattern	Select from the dropdown a preferred Hatch Pattern for the Scheduled Blocks. For better illustration, “Solid” type is recommended.
Title	Title display settings.
Show Title	Flag to show a selected level Title at the top.
Font	Title font selection.
Size	Title size selection.
Style	Title style selection.
Labels	Labels display settings.
Show Labels	Flag to show a block property (i.e. blast type) over every block.
Font	Label font selection.
Size	Label size selection.
Style	Label style selection.
Legends	Legend display settings.
Show Legends	If Show Legends is ticked, you will see a legend of color assignments by period on the right side of the viewport.
Font	Legend font selection.
Size	Legend size selection.
Style	Legend style selection.
Block Model	Block Model display settings.
Show Block Model	Flag to show a Block Model.
Show Grid Lines	Flag to show a Grid Lines.
Clip to Silhouette	Flag to clip Block Model to Silhouette.
Shading	Select a Shading from the list (ability to create a Custom Shading for Block Model).
Constraint	Select a Constraint from the List, if no Constraint presented on the List. Ability to create Custom Constraint.
Opacity [0.1 - 1.0]	Specify a preferred Block Model Opacity, from 0.1 to 1.
Image Size	Exported image settings.
Width	Enter the width of the plot.
Height	Enter the height of the plot.

Ability to Configure Block Shading



Configure Constraints with the Script

Want to learn more?

Online Help Manuals - Click here for the latest version

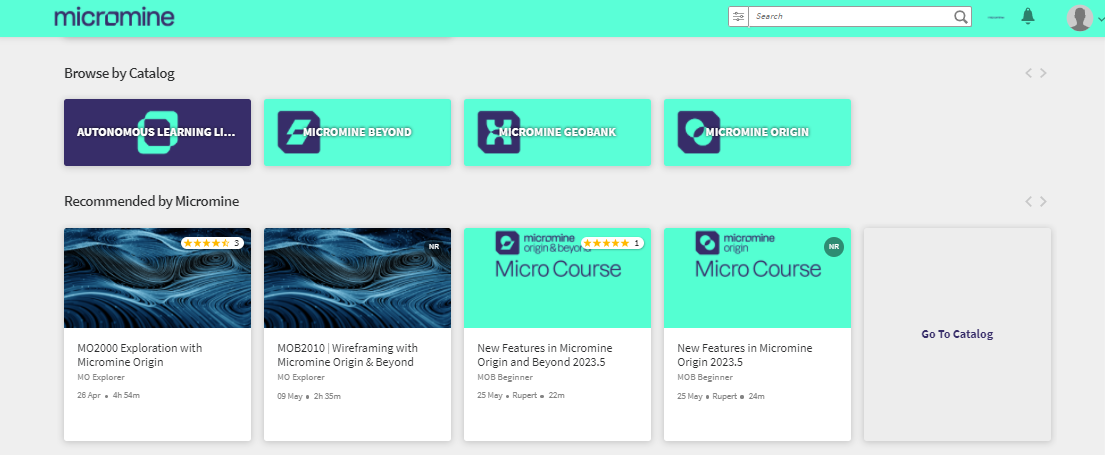

Learning Management System - Click here to login or here to request access
